BMC/SMC Molds

BMC/SMC Molds

Custom high Precision Compression/Injection Moulds Manufacturing with fast lead time
BMC/SMC Mould Manufacturer
We mainly use injection molding and pressure molding as the methods. When designing the flow channel and parting surface, we think that the cavity pressure should be as small as possible, especially some small ribs, as well as the smooth exhaust, the discharge position, shape, and material flow direction, which would all be fully considered. And the active exhaust must be complete with an overflow. We guarantee the appearance and strength. With the Vacuuming structure, the mold temperature balance is consistent as the appearance and strength of the product shall be guaranteed as well.

Waiwai Tree is a professional smc molding and manufacturing provider. We provide you with SMC injection molding and BMC injection molding. You can know difference between SMC and BMC from us.
PRODUCTS
Types of BMC/SMC Molds
Motor Mold
Motor Mold is designed mainly for injection molding with the runner and parting surface would be precisely small.
High Voltage Electrical Product Mould
High Voltage Electrical Product Mould is a featured products and the mold temperature can be balanced with a vacuum sructure.
Low Voltage Electrical Appliance Mould
Low Voltage Electrical Appliance Mould is mainly used for pressure molding and for the movable exhaust and designed with a overflow trough.
Auto Parts Mould
Auto Parts Mould sloves the problem of ligh-weight, aging and other leakage issues as well as reduces more costs but improves the quality.
Frame Moulding
Frame Moulding has high plasticity with a precise size but high insulation ability and high temperature resistance.
Inquire About Our Motor Molds
high insulation, chemical resistance, high fire resistance, good water resistance, accurate size, stable working performance, light weight, high strength, acid and alkali resistance, waterproof, moisture-proof, low energy consumption, no waste, no need to clean the mold cavity, mold The temperature is stable, the temperature difference is small, the breakage is short, poor appearance is less, and the efficiency is high.

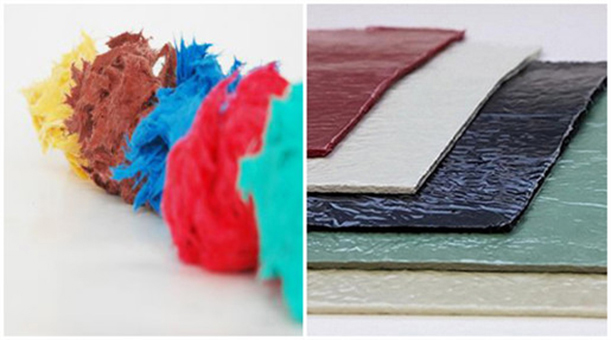

Difference Between SMC and BMC

Difference Between SMC and BMC
SMC is a combination of long chopped glass strands, mineral fillers and liquid thermosetting resin in the form of a malleable sheet material. Processing of SMC of is typically done by compression or injection molding.
Sheet Molding Compound (SMC) is a compression molding compound often used for larger parts where higher mechanical strength is needed. SMC is a fiber reinforced thermoset material. Glass reinforcement is between 10% and 60%, and glass length is slightly longer than Bulk Molding Compound (BMC) - between 1/2-inch and 1-inch (25mm).

BMC is a combination of short chopped glass strands, mineral fillers and liquid thermosetting resin in the form of a bulk material. BMC is suitable for either compression or injection molding.
Bulk Molding Compound (BMC) is a thermoset plastic resin blend of various inert fillers, fiber reinforcement, catalysts, stabilizers, and pigments that form a viscous, 'puttylike' injection molding compound. Bulk Molding Compound (BMC) is highly filled and reinforced with short fibers. Glass reinforcement represents between 10% and 30%, with glass length typically between 1/32-inch and 1/2-inch (12.5mm).

Bulk Molding Compound (BMC) is a thermoset plastic resin blend of various inert fillers, fiber reinforcement, catalysts, stabilizers, and pigments that form a viscous, 'puttylike' injection molding compound. Bulk Molding Compound (BMC) is highly filled and reinforced with short fibers. Glass reinforcement represents between 10% and 30%, with glass length typically between 1/32-inch and 1/2-inch (12.5mm).

SMC Material & Compression Molding Processes

SMC Material & Compression Molding Processes
The basic process of the compression molding process is to place a certain amount of the pre-treated molding material into a preheating compression mold, and apply a higher pressure to fill the mold cavity with the molding material. Under the predetermined temperature conditions, the molding material is gradually solidified in the cavity, and then the SMC product is taken out from the stamper, and the necessary auxiliary processing is performed to obtain the final product.

The pressing process of the composite molded product is a process of solidifying into a product in a cavity after the binder is loaded or heated under the condition that the curing agent is present or heated. Molding temperature, molding pressure and mold exhaust, temperature balance, and mold structure all affect the quality of SMC products. It is necessary to determine the best solution under the consideration of various influencing factors.

BMC Material & Injection Molding Processes

BMC Material & Injection Molding Processes
BMC is the initial abbreviation of English Bulk Molding Compound, and the Chinese name is a group molding compound. Pre-mixed into a paste by unsaturated polyester resin, low shrinkage/low profile additive, initiator, internal mold release agent, mineral filler, etc., and then added thickener, colorant, etc., with different lengths of glass fiber, in special Stirring in the kettle is carried out to carry out a thickening process, which finally forms a dough-like intermediate material which can be used for molding and injection molding.

The BMC injection molding process basically follows the same rules as the injection mold. However, SMC and BMC molds also have different characteristics from injection molds, such as flow path, exhaust, heating, cavity pressure and balance, parting structure, mold steel used and precision, shrinkage and injection molds. Differently, the BMC mold is molded at a high temperature, and the plastic mold is molded at a normal temperature.

BMC/SMC Mould Manufacturing

SMC and BMC molds require heating rather than cooling systems. The temperature of the mold is usually between 130 and 160. It is very important to keep the temperature of the mold and the exhaust gas when designing the mold. The mold is easier to fill, the product is not easy to be deformed, and the surface is better. Commonly used heating systems are steam, oil and electric heating rods.

Vacuum assisted systems for BMC and SMC molds: Products with Class A surfaces are usually vacuum-assisted, and the internal cavity and vacuum insulation of the mold are very important. The mold must have a sensor and a vacuum system to measure the mold temperature and pressure vacuum. Production SMC and BMC molds must guarantee high quality, long life and economy. Aobang Technology Co., Ltd.'s years of experience in the production of SMC and BMC molds and proficiency in machine, mold, material and process can ensure the maximum benefit of customers.
BMC/SMC Mould Manufacturing
GET IN TOUCH
GET IN TOUCH
Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
Contact Info
Whether you have a question about product featurres, shipping, site policies or anything else, we're here to help ad ready to answer your questions.
  • Call
    +86-15657163173
  • Email
    info@waiwaitree.com
  • Address
    No.62 zhidailang, Sha Village, Luoshe Town, Deqing, Huzhou city, Zhejiang, China
Request a Free quote
Application
  • Automotive
    Automotive
    Sheet molding compound (SMC) mold can be used to manufacturing parts of cars, buses, trucks, transport and special vehicles.
  • New Energy Vehicle
    New Energy Vehicle
    Sheet molding compound (SMC) mold can be used to manufacturing parts of new energy vehicle.
  • Ship
    Ship
    Sheet molding compound and bulk molding compound are widely used for Ship. Click here for more info about the SMC & BMC material.
